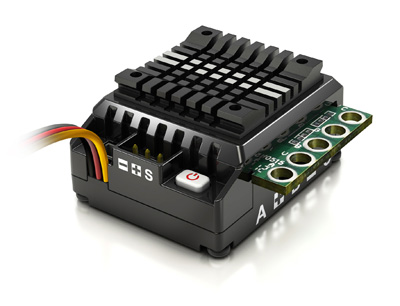

Toro TS 120A ESC
Toro TS 120A ESC for 1/10th Scale Car is designed for the use with 2S to 3S LiPo battery packs, has a 3.5T motor limit and features a 6V/3A BEC system. This feature does away with the need to use a separate receiver battery pack.
10 User Modifiable Profiles
The users could set and store 10 sets of profiles in the ESC. These data could be called out at any time without any special program setting. All the setting can be exported or imported so that the user could compare and analyze.
Firmware Update
The firmware can be updated by connecting the ESC with PC or smart phone.
Programming Method
It can be programmed by PC connected with
1.SKYLINK(SK-600013)
2.Smart phone via Bluetooth Module(SK-600058)
3.PROGBOX(SK-300046)
Precise Programmable Items
Advanced Timing System
Users could set the turbo and boost timing which can improve the motor RPM to get its best performance.
Well-performed Throttle and Brake Control Function
Users could set the punch/brake control rate by point or customize the throttle/brake curve by themselves,and different customers' request for linear and power all can be met.
Weight 45g (w/o wire)
Constant/Burst Current
120A/760A
Motor Compatible
Brushless Sensor & Sensorless ESC
Car Compatible 1/10 and 1/12 Buggy and Truck
1/10 and 1/8 Crawlers
Motor Limits 5-6S NIMH or 2S LIPO--≥3.5T(1/10 Buggy), ≥5.5T(1/10 Truck)
8-9S NIMH or 3S LIPO--≥5.5T(1/10 Buggy),≥8.5T(1/10 Truck)
Resistance 0.0003ohm
Battery Cell Count 4-9S NIMH or 2-3S LIPO
BEC Output 6V@3A, linear
FAN 5V@0.2A , MAX 12.6V
|
 |
|
Our price |
|
|
|
£80.00 |
|
|
