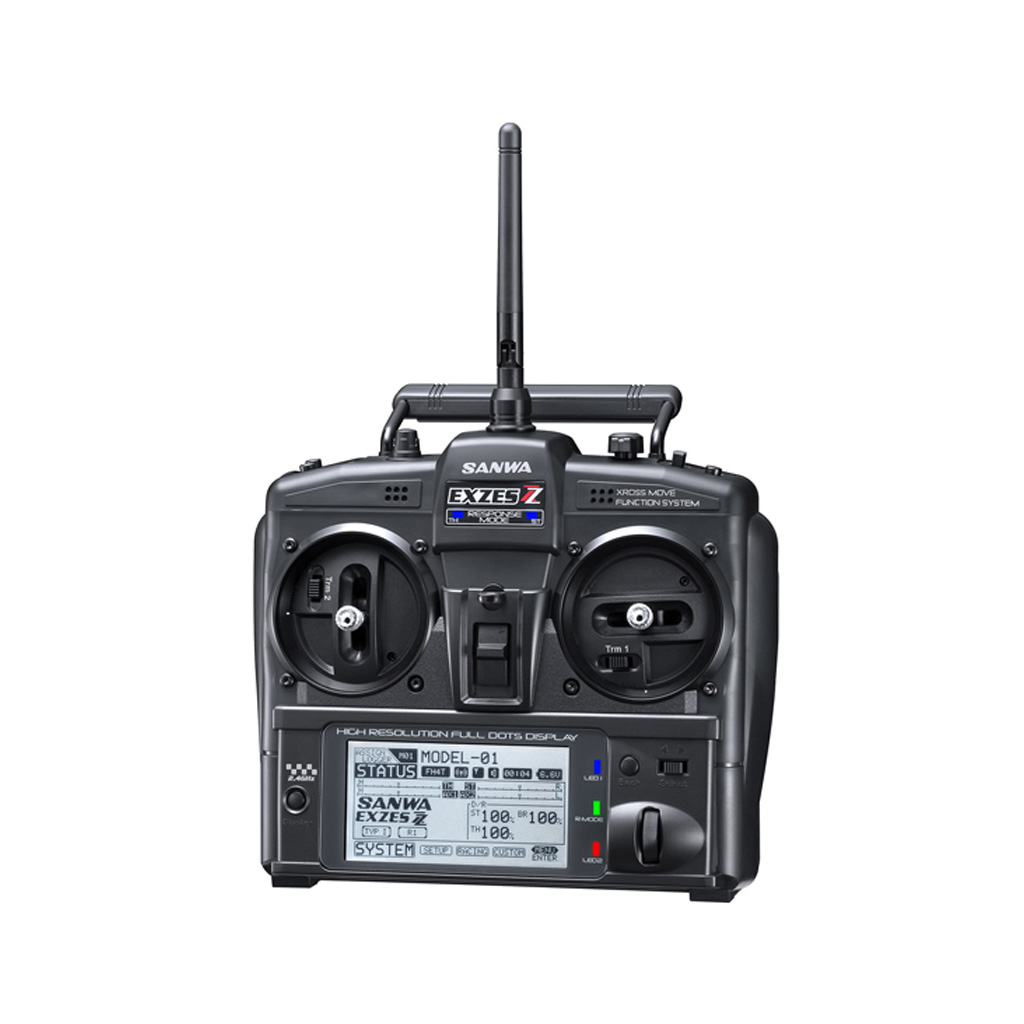

Product Description
--SYSTEM: 2.4GHz Computer System FH4/FH3
--CH: 4CH
--TRANSMITTER: TX-452
--RECEIVER: RX472
Features
--Telemetry Mixing --Template --Vibrator --Mode Select --Throttle Slow --Life-Battery Compatible --Earphone Jack
--Ackerman Steering --Racing Mode (Enhanced) --Timer/Alarm (Enhanced) --CODE10/Telemetry Assignment
--CODE AUX NAMING
[OTHER FEATURES]
--FSTN Large full dot LCD (128x256) --Menu Selector --ST, TH Spring adjustment --Logger
--Feeling --PC Link --Monitoring --Racing Mode --Car Type Select --CODE AUX
--Cross Movement Function System --Bind --Model Memory(50 models) --Model Name(14 letters)
--LCD Contrast --RF Mode Setting (FH4/FH3) --Response Mode Setting(NOR/SHR/SSR)
--Model(Select/Copy/Clear/Sort) --Vibrator --Key Assignment (SW/TRIM/DIAL/LEVER)
--Buzzer(Selectable Scale/Volume) --AUX Type Setting (AUX/AUX1/AUX2) --Point AUX
--MOA AUX --4WS AUX --Trim Type(Center/Parallel) --User Name(14 letters) --Information
--Log(REC/RPM/VOLT/TEMP1/TEMP2/ST POINT/TH POINT/RX MODE) --Battery Alarm
--EPA --Trim/Sub Trim --Servo Reverse --Fail Safe (Radio Wave/Battery) --Boost Menu
--Timer(Lap/Interval 1/Interval 2) --Dual Rate(ST/TH/BR) --Curve(EXP/ARC/CRV) --Point Curve
--SPEED --Anti-Lock Brake --Brake Mixing --TH Hold --Ackerman Steering --Compensation Mixing
(C-MIX1/C-MIX2) --Safety Link --Direct Model Select --Language --Customized menu --Throttle Type
--Offset --CH Set --Calibration: Ex-Volume Adjustment (ST/TH/LEVER)
--Compatible Receivers: RX-482, RX-481, RX-472, RX-471 Dual-ID, RX-471W, RX-471, RX-462,
RX-461, RX-451R, RX-451, RX-381, RX-380
[SSL(SANWA Synchronized Link) Sysytem]
SANWA NEW SSL SYSTEM
Extra Info
--When used with compatible RX-472, RX-482, Super Vortex Series, SV-Plus Series, the setting of ESC etc. by Transmitter is available through SSL functions while driving.
--Since the setting can be done without the stop of car, the detailed adjustment in accordance with Race conditions
is available without interruption of Intervals and the change of machine conditions.
[Response of Telemetry System]
--It is often said that telemetry system reduce response speed. However, SANWA Original Data Processing and Algorithm Design makes Telemetry possible without response speed reduction.
Our Excellent Telemetry System has no response speed reduction.
--With our telemetry system, the precious race data will help the next race setting and driving.
[Response Mode]
--Please do not use Analog Servo for SHR mode or SSR mode.
If analog servo is used for SHR mode or SSR mode, the servo will be broken and will not work.
Digital servo (SRG series, Digital ERG series, SDX series) can be used both for NOR mode and SHR mode.
--SSR mode can be used only by SRG series servo.
--In SHR or SSR mode, BL-RACER, BL-FORCE, BL-SPORT, F2000, F2200, F3000, F3300, SBL-01, SBL-02 and SBL-03CR do not work. Please make sure to use NOR Mode for them.
--SV-08, HV-10, HV-12, F2500 can be used for both NOR and SHR Mode.
Please use NOR mode for the above ESC.
Instruction Manual (37mb Download)
Requires Battery - We recommend IP752880-2S
|
 |
|
