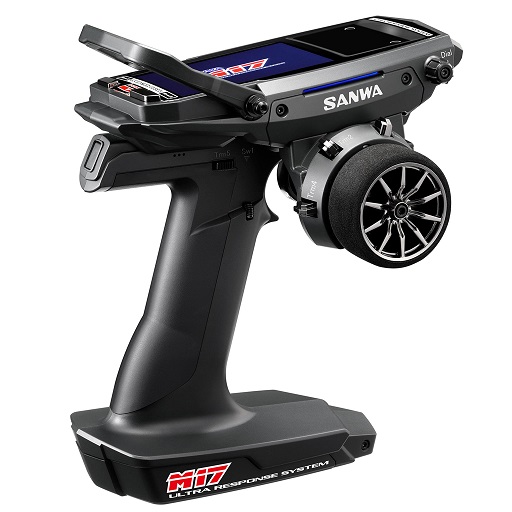

SANWA M17 with RX493 Receiver.
Main Features
- Ultra Response Mode (SUR) New Transmitter system "FH5" makes new record of the World Fastest Response.
- Color Display and Touch Panel are easy to control.
- Light weight (about 510g) and high rigidity than M12S
- Steering and Throttle Position Optimization and Steering Swing Adjust Function
- Detachable Throttle Unit is available to change spring by drivers (World First)
Product Description
- Installed "Fine Color Display (480x320)
- Touch Pad can be smooth & quick to set
- Installed Detachable Throttle Unit is available to change spring by drivers
- Steering and Throttle position can be optimized without off set bracket. Improved Steering Unit can be increased case strength during operation
- Improved Steering Unit is available to be steering swing adjustment
- Battery recharge port is installed and battery can be check when recharging
- Compatible with Micro SDHC Card is available to manage firmware update, model data, and Telemetry Log
- Installed Multi-Setting Function is available to set PGS servos to connect with transmitter
- Compatible with SSL CODE10 and CODE5 function is available to set PGS servos and SUPER VORTEX Gen2 PRO without any connection
- Installed tilt carrying handle can be holding and easy to put in the box
- Steering Unit can change position for lefty
- Detachable Strap Hook is placed on ideal position for drivers
- Succeeded Full Adjustable Trigger can be fittable for individual
- Optional Large Steering Wheel in package is available to be fine operation
- Available to customize by grip pad, brake trigger, angle spacer, and variable spring in package
- RX-491 is compacted receiver and waterproof and is plugged in BIND system and short antenna
- Installed Screen Reader Function is available to sound Lap Time and Telemetry Data and installed headphone jack can be used
- Quick and easy to set as model data and other setting by Quick Set Up Wizard
- Includes LiPo battery, 3.7v 1S 2500mAh which can be charged through micro USB.
System Features
- Dull-dot Color LCD(480x320) - Switchable driving position(Left/Right) - Touch Pad - Built-in Antenna - ST,TH Adjuster - Detachable Fully Adjustable Throttle Unit - Feeling - Safety Link- Racing Mode - Setup Wizard - Dual Rate - End Pint Adjust - Anti-Lock Brake - Servo Speed - Offset - Trim/Sub Trim - Servo Reverse - Curve - Fail Safe - Timer - Lap - CODE AUX - Model Memory - Model Name - Model (Select/Copy/Clear/Sort) - Direct Model Select - RF Mode (FH5,FH4,FH3) - Response Mode (SUR/SSR/SHR/NOR) - Bind - Log(REC/RPM/VOLT/TLM1/TLM2/ST Point/TH Point/RX Mode/Reading Function) - Servo Monitor - Key Assign - Vibrator - AUX Type - Trim Type - TH Type - Calibration - Custom Menu - Mechanical Rudder Angle Adjustment - Large Steering Wheel included - Large/Small Grip Pad included - Compatible RX: Telemetry-compatible(RX-491, RX-482, RX-472, RX-47T, RX-462, RX-461) , Non-Telemetry-Compatible(RX-481,RX-481WP, RX-471 Dual ID, RX-471W, RX-451R, RX-451, RX-381,RX-480)
Accessory
- Grip Pad (Large/Small) - Large Steering Wheel - Strap Hook - Steering Slant Parts (Right Hand/Left Hand) - Trigger Angle Spacer - Brake Trigger(+1/+2) - Spring for ST and TH (Hard, Medium, Soft, Super Soft) - Dial Cover for Lefty
Receiver Features
- Compact receiver
- Waterproof
- Plug in Bind
- Short Coaxial Antenna
- 2.4 GHz FHSS5 Spread Spectrum System 4ch
- Compatible with Telemetry
*Cannot connect RPM sensor and Temperature sensor To measure RPM and Temperature is only combine with SUPER VORTEX series
- Compatible with SSL (SUPER VORTEX Series, etc...)
- Ultra Response Mode (SUR)
- Extreme Response Mode (SXR)
- The smallest and lightest receiver in the class
(The RX493 receiver differs to the RX491 by allowing an aerial tube to be used to improve aerial mounting and stability. It also supports SXR Extreme response mode)
Recommended optional battery
IP584674-1S2P - TX Battery for Sanwa M17=6000mAh-3.7V
or
AM700995 - AM Lipo 6000mAh - 3.7V for Sanwa M17 v2
Latest Firmware(Ver 1.01.10) 04/08/2020 |
 |
|
